Tutorial: Building Secure Data Pipelines with SDLC/DevSecOps on AWS, Azure, and Google Cloud

Security Careers

Security Careers

— 7 min read
Tutorial: Building Secure Data Pipelines with SDLC/DevSecOps on AWS, Azure, and Google Cloud

In this tutorial, we'll explore how to build secure data pipelines on AWS, Microsoft Azure, and Google Cloud using principles of Secure Development Lifecycle (SDLC) and DevSecOps. We'll discuss the architecture and tools available on each cloud platform, and how to integrate security into every stage of your data pipeline.

1. Understanding the Data Pipeline Components

A data pipeline typically consists of several key stages:

  1. Ingestion: The process of collecting data from various sources.
  2. Data Lake: A centralized repository for storing large amounts of raw data in its native format.
  3. Preparation & Computation: Transforming and analyzing data for use in downstream processes.
  4. Data Warehouse: Structured storage for processed data, optimized for querying and reporting.
  5. Presentation: The final stage where processed data is visualized or consumed by applications.

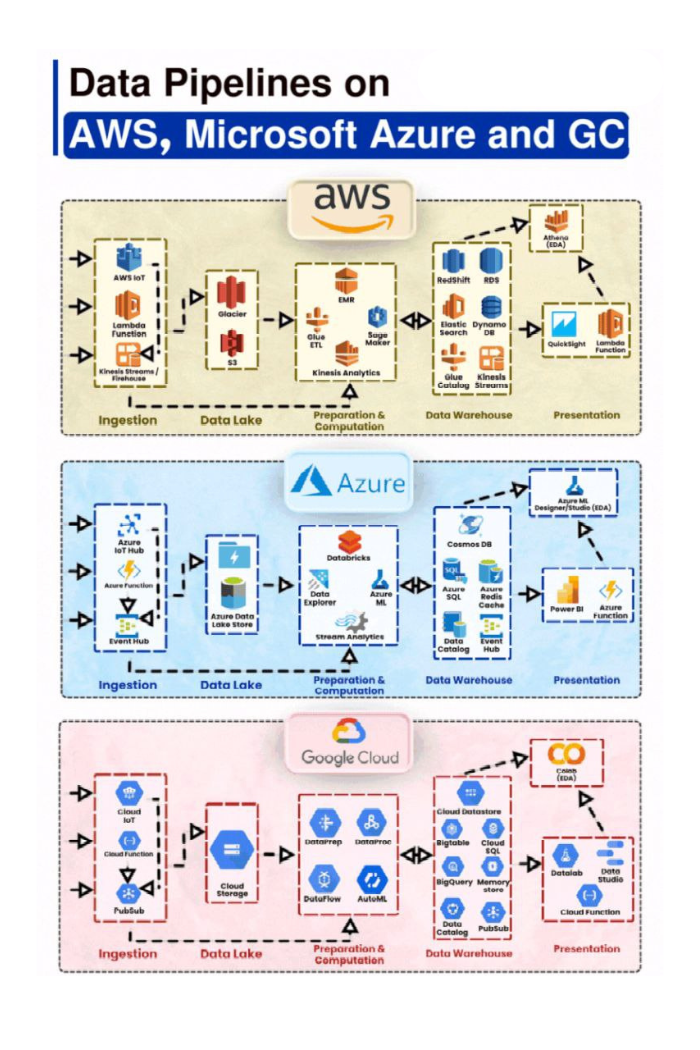

Each cloud platform provides services that fit into these stages:

AWS Pipeline Components

  • Ingestion: AWS IoT, Lambda Function, Kinesis Streams/Firehose
  • Data Lake: S3, Glacier
  • Preparation & Computation: EMR, Glue ETL, Kinesis Analytics, SageMaker
  • Data Warehouse: Redshift, RDS, Elastic Search, DynamoDB
  • Presentation: Quicksight, Athena, Lambda Function

Azure Pipeline Components

  • Ingestion: Azure IoT Hub, Azure Function, Event Hub
  • Data Lake: Azure Data Lake Store
  • Preparation & Computation: Databricks, Data Explorer, Stream Analytics, Azure ML
  • Data Warehouse: Cosmos DB, SQL Database, Azure Redis Cache, Event Hub
  • Presentation: Power BI, Azure ML Designer/Studio, Azure Function

Google Cloud Pipeline Components

  • Ingestion: Cloud IoT, Cloud Function, Pub/Sub
  • Data Lake: Cloud Storage
  • Preparation & Computation: DataPrep, DataProc, DataFlow, AutoML
  • Data Warehouse: Cloud Datastore, Bigtable, Cloud SQL, BigQuery
  • Presentation: DataLab, Data Studio, Cloud Function

2. Integrating SDLC and DevSecOps into Data Pipelines

To ensure that your data pipelines are secure, you must integrate security into every phase of the Software Development Lifecycle (SDLC) and adopt DevSecOps practices. Here’s how you can achieve that:

2.1 Planning and Requirements

  • Security in Requirements: Define security requirements during the planning stage. Identify sensitive data, compliance needs (e.g., GDPR, HIPAA), and potential threats.
  • Threat Modeling: Conduct a threat modeling exercise to identify potential security risks and design countermeasures.
  • Tool Integration: Plan for the integration of security tools like static analysis, vulnerability scanning, and secrets management into your CI/CD pipeline.

2.2 Development

  • Secure Coding Practices: Follow secure coding guidelines to avoid introducing vulnerabilities. Ensure that data is validated, sanitized, and encrypted where necessary.
  • Code Reviews: Implement peer reviews and automated code analysis tools (e.g., SonarQube) to detect and fix security issues early.
  • CI/CD Pipeline: Integrate security testing tools into your CI/CD pipeline. Tools like Checkmarx or Snyk can scan code for vulnerabilities.

2.3 Testing

  • Automated Testing: Include automated security tests in your CI/CD pipeline. Perform unit tests, integration tests, and end-to-end tests with a focus on security.
  • Penetration Testing: Conduct regular penetration testing on your data pipeline to identify and address security gaps.
  • Continuous Monitoring: Use tools like AWS CloudWatch, Azure Monitor, or Google Cloud Operations to monitor the pipeline for unusual activities.

2.4 Deployment

  • Infrastructure as Code (IaC): Manage infrastructure using code (e.g., Terraform, AWS CloudFormation, Azure ARM Templates) and enforce security policies in your IaC scripts.
  • Immutable Infrastructure: Deploy applications on immutable infrastructure to reduce the risk of drift and configuration errors.
  • Access Control: Implement strict access controls using Identity and Access Management (IAM) policies. Ensure that only authorized personnel can deploy or modify the pipeline.

2.5 Operations

  • Monitoring and Logging: Continuously monitor the pipeline's performance and security. Set up alerts for suspicious activities.
  • Incident Response: Develop and test an incident response plan to quickly mitigate and recover from security incidents.
  • Patch Management: Regularly update and patch all components of the data pipeline to protect against known vulnerabilities.

2.6 Maintenance

  • Regular Audits: Perform security audits and compliance checks regularly to ensure that the pipeline remains secure.
  • Continuous Improvement: Use feedback from audits, tests, and monitoring to continuously improve the security of the pipeline.
  • Education and Training: Keep your team updated on the latest security practices and threats through regular training.

3. Building Secure Data Pipelines on AWS, Azure, and Google Cloud

Now, let's see how the above principles are applied to each cloud platform:

3.1 AWS

  • IAM Policies: Use AWS IAM to enforce the least privilege principle, ensuring that services like Lambda or Kinesis have only the permissions they need.
  • S3 Bucket Policies: Secure your data lake by enforcing strict S3 bucket policies and enabling encryption at rest with AWS KMS.
  • VPC and Security Groups: Isolate your data pipeline within a VPC and use Security Groups to restrict access to only the necessary ports and services.
  • AWS WAF: Protect web applications in the pipeline with AWS Web Application Firewall (WAF) to prevent common attacks like SQL injection or XSS.
  • AWS GuardDuty: Use AWS GuardDuty for continuous threat detection and monitoring across your AWS environment.

3.2 Azure

  • Azure Policy: Enforce governance by using Azure Policy to ensure compliance with organizational and regulatory requirements.
  • Azure Security Center: Utilize Azure Security Center to gain visibility into your pipeline's security state and receive actionable recommendations.
  • Private Endpoints: Use Azure Private Link to connect securely to Azure services like SQL Database or Storage Account, avoiding exposure to the public internet.
  • Key Vault: Store and manage sensitive information like API keys, passwords, and certificates securely in Azure Key Vault.
  • Log Analytics: Leverage Azure Monitor and Log Analytics to track security-related events and operational data.

3.3 Google Cloud

  • Cloud Identity & Access Management (IAM): Set up granular access controls for Google Cloud resources to enforce the principle of least privilege.
  • VPC Service Controls: Use VPC Service Controls to define security perimeters around Google Cloud services to prevent data exfiltration.
  • Data Loss Prevention (DLP): Implement Google Cloud DLP to scan and redact sensitive information before it’s stored in the data lake or warehouse.
  • Shielded VMs: Deploy workloads on Shielded VMs to protect against rootkits and bootkits.
  • Stackdriver Security: Integrate Google Stackdriver for monitoring and logging to detect and respond to security incidents in real time.

4. Advanced Security Considerations for Modern Data Pipelines

As data pipeline architectures evolve and new technologies emerge, it's crucial to consider additional security aspects. This section covers advanced topics to further enhance the security of your data pipelines across AWS, Azure, and Google Cloud.

4.1 Implementing Zero Trust Architecture

Zero Trust is a security model that assumes no trust by default, even within the network perimeter. Implementing Zero Trust principles in your data pipeline involves:

  • Identity-based Access Control: Use strong authentication mechanisms like Multi-Factor Authentication (MFA) across all cloud services.
    • AWS: AWS IAM with MFA
    • Azure: Azure Active Directory with Conditional Access
    • Google Cloud: Cloud Identity with 2-Step Verification
  • Micro-segmentation: Implement fine-grained network segmentation to isolate components of your data pipeline.
    • AWS: Use VPC, Security Groups, and Network ACLs
    • Azure: Implement Network Security Groups and Application Security Groups
    • Google Cloud: Utilize VPC Firewall Rules and Service Perimeters
  • Continuous Monitoring and Validation: Implement real-time monitoring and analytics to detect anomalies.
    • AWS: AWS GuardDuty, CloudTrail, and CloudWatch
    • Azure: Azure Sentinel, Azure Monitor, and Azure Security Center
    • Google Cloud: Cloud Armor, Cloud Audit Logs, and Security Command Center

4.2 Serverless Security Considerations

Serverless architectures introduce unique security challenges. Address these by:

  • Function-level Security: Implement the principle of least privilege for each serverless function.
    • AWS: Use IAM roles for Lambda functions
    • Azure: Implement Managed Identities for Azure Functions
    • Google Cloud: Use Service Accounts for Cloud Functions
  • Dependency Management: Regularly scan and update dependencies to prevent vulnerabilities.
    • Use tools like OWASP Dependency-Check or Snyk in your CI/CD pipeline
  • Event-driven Security: Implement security controls for event sources and triggers.
    • AWS: Secure API Gateway endpoints, validate S3 event notifications
    • Azure: Secure Event Grid subscriptions, implement Logic Apps security
    • Google Cloud: Secure Cloud Pub/Sub topics, implement proper IAM for Cloud Tasks

4.3 Container Security

For containerized workloads in your data pipeline:

  • Image Scanning: Implement vulnerability scanning for container images.
    • AWS: Amazon ECR image scanning
    • Azure: Azure Container Registry vulnerability scanning
    • Google Cloud: Container Analysis API
  • Runtime Security: Implement runtime protection for containers.
    • Use tools like Falco or Aqua Security across all cloud platforms
  • Secure Orchestration: Implement security best practices for container orchestration.
    • For Kubernetes: Use Pod Security Policies, Network Policies, and RBAC

4.4 Multi-Cloud Security Strategies

When operating across multiple cloud providers:

  • Unified Identity Management: Implement a centralized identity solution.
    • Consider using Azure AD or Okta for cross-cloud identity management
  • Consistent Policy Enforcement: Use cloud-agnostic policy frameworks.
    • Implement tools like Open Policy Agent (OPA) for consistent policy enforcement
  • Centralized Monitoring: Aggregate logs and metrics from all cloud providers.
    • Use solutions like ELK stack or Splunk for centralized visibility

4.5 AI/ML Model Security

For data pipelines involving AI/ML models:

  • Model Versioning and Auditing: Implement version control and auditing for ML models.
    • Use MLflow or DVC for model versioning across cloud platforms
  • Secure Model Deployment: Implement secure practices for model deployment and serving.
    • AWS: Use SageMaker with VPC configuration
    • Azure: Implement Azure Machine Learning with Private Link
    • Google Cloud: Use AI Platform with VPC-SC
  • Data Poisoning Prevention: Implement safeguards against training data manipulation.
    • Implement data validation and anomaly detection in your data preparation stage

4.6 Enhanced Data Governance

Strengthen data governance in your pipeline:

  • Data Classification: Implement automated data classification.
    • AWS: Use Macie for sensitive data discovery
    • Azure: Implement Azure Information Protection
    • Google Cloud: Use Cloud Data Loss Prevention (DLP)
  • Data Lineage Tracking: Implement data lineage for transparency and compliance.
    • Consider tools like Apache Atlas or Collibra that can work across cloud platforms

4.7 Compliance Automation

Automate compliance checks and reporting:

  • Continuous Compliance Monitoring: Implement tools for ongoing compliance checks.
    • AWS: AWS Config Rules and AWS Audit Manager
    • Azure: Azure Policy and Azure Blueprints
    • Google Cloud: Forseti Security and Cloud Asset Inventory
  • Automated Reporting: Set up automated compliance reporting.
    • Use cloud-native tools or third-party solutions like Prisma Cloud for automated reporting

4.8 API Security

Secure APIs in your data pipeline:

  • API Gateway Security: Implement robust security at the API gateway level.
    • AWS: Use API Gateway with AWS WAF
    • Azure: Implement Azure API Management with Azure Front Door
    • Google Cloud: Use Apigee with Cloud Armor
  • OAuth and JWT: Implement OAuth 2.0 and JWT for API authentication and authorization across all platforms.

4.9 Chaos Engineering for Security

Implement chaos engineering to improve security resilience:

  • Controlled Experiments: Conduct controlled chaos experiments to test security controls.
    • Use tools like Gremlin or Chaos Toolkit that work across cloud platforms
  • Automated Security Chaos: Implement automated chaos experiments in your CI/CD pipeline to continuously validate security controls.

4.10 GitOps for Infrastructure Security

Apply GitOps principles to manage and secure cloud infrastructure:

  • Infrastructure as Code (IaC) Security: Implement security scanning for IaC templates.
    • Use tools like Checkov or tfsec for Terraform scripts
  • GitOps Workflows: Implement GitOps workflows for infrastructure changes.
    • Use tools like Flux or ArgoCD for Kubernetes-based workloads across clouds

5. Conclusion

Building secure data pipelines on AWS, Azure, and Google Cloud requires a holistic approach that integrates security into every phase of the SDLC, from planning to operations. By leveraging the tools and services provided by each cloud provider, and by adopting DevSecOps practices, you can ensure that your data pipelines are robust, compliant, and secure against evolving threats.

Remember that security is a continuous process. Regularly update your practices, tools, and infrastructure to keep pace with new developments in the security landscape.
